Holds a reference to a large underlying sample buffer. Loops and crossfades with itself. Used for managing extra-large TENoise sample. More...

Inheritance diagram for BGC.Audio.CrossFadingRefClip:

[legend]

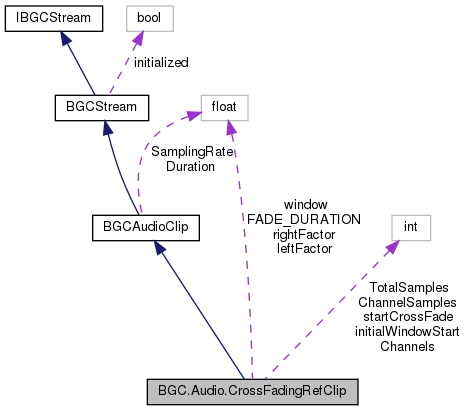

Collaboration diagram for BGC.Audio.CrossFadingRefClip:

[legend]

Public Member Functions
	CrossFadingRefClip (float[] samples, double leftFactor, double rightFactor, int initialPosition=-1)

override void	Reset ()
	Sets this internal state of this stream to the initial state More...

override int	Read (float[] data, int offset, int count)
	Copy count samples into the Data buffer, starting at offset. More...

override void	Seek (int position)
	Seek to the indicated position in the stream More...

override IEnumerable< double >	GetChannelRMS ()
	The RMS amplitude of each channel More...

Public Member Functions inherited from BGC.Audio.BGCStream
void	Initialize ()
	Perform any calculations necessary to prepare the Stream More...

Data Fields
override int	Channels => 2

override int	TotalSamples => Channels * Samples.Length

override int	ChannelSamples => Samples.Length

Data Fields inherited from BGC.Audio.BGCAudioClip
float	Duration => ChannelSamples / SamplingRate

override float	SamplingRate => 44100f

Properties
float []	Samples `[get]`

int	Position `[get, private set]`

Properties inherited from BGC.Audio.BGCStream
abstract int	Channels `[get]`

abstract int	TotalSamples `[get]`

abstract int	ChannelSamples `[get]`

abstract float	SamplingRate `[get]`

Properties inherited from BGC.Audio.IBGCStream
int	Channels `[get]`
	The number of underlying Channels of this BGCStream More...

int	TotalSamples `[get]`
	The total number of Samples of this BGCStream More...

int	ChannelSamples `[get]`
	The number of Samples of each channel for this BGCStream More...

float	SamplingRate `[get]`
	The sampling rate of the Stream More...

Private Attributes
readonly float	leftFactor = 0f

readonly float	rightFactor = 0f

const float	FADE_DURATION = 1.0f

readonly float []	window = null

int	initialWindowStart = -1

readonly int	startCrossFade

Additional Inherited Members
Protected Member Functions inherited from BGC.Audio.BGCStream
virtual void	_Initialize ()

Protected Attributes inherited from BGC.Audio.BGCStream
bool	initialized = false

Detailed Description

Holds a reference to a large underlying sample buffer. Loops and crossfades with itself. Used for managing extra-large TENoise sample.

Definition at line 12 of file CrossFadingRefClip.cs.

Constructor & Destructor Documentation

◆ CrossFadingRefClip()

BGC.Audio.CrossFadingRefClip.CrossFadingRefClip	(	float []	samples,
		double	leftFactor,
		double	rightFactor,
		int	initialPosition = `-1`
	)

inline

Definition at line 33 of file CrossFadingRefClip.cs.

References BGC.Mathematics.CustomRandom.Next().

         {
             Samples = samples;

             this.leftFactor = (float)leftFactor;
             this.rightFactor = (float)rightFactor;

             window = new float[(int)(SamplingRate * FADE_DURATION)];

             double sineArgument = Math.PI / (2 * window.Length - 1);

             for (int i = 0; i < window.Length; i++)
             {
                 window[i] = (float)Math.Sin(i * sineArgument);
             }

             startCrossFade = Samples.Length - window.Length;

             if (initialPosition == -1)
             {
                 //Start at least 2 window lengths before end
                 initialPosition = CustomRandom.Next(0, Samples.Length - (2 * window.Length + 2));
             }

             Position = initialPosition;
             initialWindowStart = Position;
         }

Here is the call graph for this function:

Member Function Documentation

◆ GetChannelRMS()

override IEnumerable<double> BGC.Audio.CrossFadingRefClip.GetChannelRMS ( )

virtual

The RMS amplitude of each channel

Implements BGC.Audio.BGCStream.

◆ Read()

override int BGC.Audio.CrossFadingRefClip.Read	(	float []	data,
		int	offset,
		int	count
	)

inlinevirtual

Copy count samples into the Data buffer, starting at offset.

Returns: The number of samples copied

Implements BGC.Audio.BGCStream.

Definition at line 72 of file CrossFadingRefClip.cs.

References BGC.Mathematics.GeneralMath.Clamp().

         {
             //Split into regions
             int remainingCount = count;

             while (remainingCount > 0)
             {
                 if (initialWindowStart != -1)
                 {
                     //Initial window period

                     //Windowing region

                     int initialWindowingEndSample = initialWindowStart + window.Length;

                     int copyLength = Math.Min(initialWindowingEndSample - Position, remainingCount / 2);

                     for (int i = 0; i < copyLength; i++)
                     {
                         float sample = window[Position - initialWindowStart + i] * Samples[Position + i];
                         data[offset + 2 * i] = leftFactor * sample;
                         data[offset + 2 * i + 1] = rightFactor * sample;
                     }

                     //Advance Indices
                     Position += copyLength;
                     offset += 2 * copyLength;
                     remainingCount -= 2 * copyLength;

                     if (Position == initialWindowingEndSample)
                     {
                         //Done with initial window
                         initialWindowStart = -1;
                     }

                 }
                 else if (Position < startCrossFade)
                 {
                     //Region 1 - No windowing Needed
                     int copyLength = Math.Min(startCrossFade - Position, remainingCount / 2);

                     for (int i = 0; i < copyLength; i++)
                     {
                         data[offset + 2 * i] = leftFactor * Samples[Position + i];
                         data[offset + 2 * i + 1] = rightFactor * Samples[Position + i];
                     }

                     //Advance Indices
                     Position += copyLength;
                     offset += 2 * copyLength;
                     remainingCount -= 2 * copyLength;
                 }
                 else
                 {
                     //Region 2 - Cross-windowing
                     int copyLength = Math.Min(Samples.Length - Position, remainingCount / 2);

                     for (int i = 0; i < copyLength; i++)
                     {
                         float outSample = window[Samples.Length - Position - i - 1] * Samples[Position + i];
                         float inSample = window[Position + i - startCrossFade] * Samples[Position + i - startCrossFade];
                         data[offset + 2 * i] = leftFactor * (outSample + inSample);
                         data[offset + 2 * i + 1] = rightFactor * (outSample + inSample);
                     }

                     //Advance Indices
                     Position += copyLength;
                     offset += 2 * copyLength;
                     remainingCount -= 2 * copyLength;

                     if (Position >= Samples.Length)
                     {
                         Position = window.Length;
                     }
                 }
             }

             return count;
         }

Here is the call graph for this function:

◆ Reset()

override void BGC.Audio.CrossFadingRefClip.Reset ( )

inlinevirtual

Sets this internal state of this stream to the initial state

Implements BGC.Audio.BGCStream.

Definition at line 65 of file CrossFadingRefClip.cs.

References BGC.Mathematics.CustomRandom.Next().

         {
             //Start at least 2 window lengths before end
             Position = CustomRandom.Next(0, Samples.Length - (2 * window.Length + 2));
             initialWindowStart = Position;
         }

Here is the call graph for this function:

◆ Seek()

override void BGC.Audio.CrossFadingRefClip.Seek ( int position )

virtual

Seek to the indicated position in the stream

Implements BGC.Audio.BGCStream.

Field Documentation

◆ Channels

override int BGC.Audio.CrossFadingRefClip.Channels => 2

Definition at line 15 of file CrossFadingRefClip.cs.

◆ ChannelSamples

override int BGC.Audio.CrossFadingRefClip.ChannelSamples => Samples.Length

Definition at line 18 of file CrossFadingRefClip.cs.

◆ FADE_DURATION

const float BGC.Audio.CrossFadingRefClip.FADE_DURATION = 1.0f

private

Definition at line 27 of file CrossFadingRefClip.cs.

◆ initialWindowStart

int BGC.Audio.CrossFadingRefClip.initialWindowStart = -1

private

Definition at line 30 of file CrossFadingRefClip.cs.

◆ leftFactor

readonly float BGC.Audio.CrossFadingRefClip.leftFactor = 0f

private

Definition at line 24 of file CrossFadingRefClip.cs.

◆ rightFactor

readonly float BGC.Audio.CrossFadingRefClip.rightFactor = 0f

private

Definition at line 25 of file CrossFadingRefClip.cs.

◆ startCrossFade

readonly int BGC.Audio.CrossFadingRefClip.startCrossFade

private

Definition at line 31 of file CrossFadingRefClip.cs.

◆ TotalSamples

override int BGC.Audio.CrossFadingRefClip.TotalSamples => Channels * Samples.Length

Definition at line 17 of file CrossFadingRefClip.cs.

◆ window

readonly float [] BGC.Audio.CrossFadingRefClip.window = null

private

Definition at line 29 of file CrossFadingRefClip.cs.

Property Documentation

◆ Position

int BGC.Audio.CrossFadingRefClip.Position

getprivate set

Definition at line 22 of file CrossFadingRefClip.cs.

◆ Samples

float [] BGC.Audio.CrossFadingRefClip.Samples

get

Definition at line 20 of file CrossFadingRefClip.cs.

The documentation for this class was generated from the following file:

Audio/Streams/CrossFadingRefClip.cs
