Stream that stores the left and right channels as separate arrays More...

Inheritance diagram for BGC.Audio.InterlacingAudioClip:

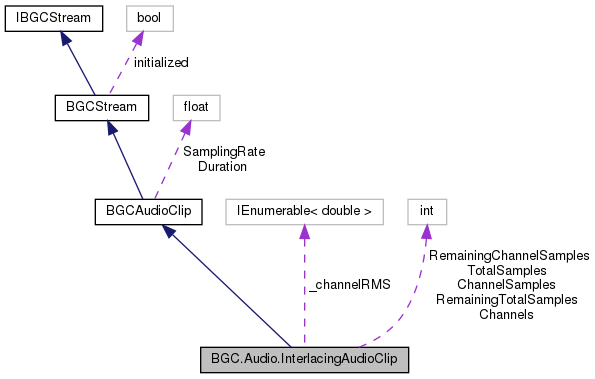

Collaboration diagram for BGC.Audio.InterlacingAudioClip:

Public Member Functions
	InterlacingAudioClip (float[] leftSamples, float[] rightSamples)

override int	Read (float[] data, int offset, int count)
	Copy count samples into the Data buffer, starting at offset. More...

override void	Seek (int position)
	Seek to the indicated position in the stream More...

override void	Reset ()
	Sets this internal state of this stream to the initial state More...

override IEnumerable< double >	GetChannelRMS ()
	The RMS amplitude of each channel More...

Public Member Functions inherited from BGC.Audio.BGCStream
void	Initialize ()
	Perform any calculations necessary to prepare the Stream More...

Data Fields
override int	ChannelSamples => LSamples.Length

override int	TotalSamples => Channels * LSamples.Length

override int	Channels => 2

Data Fields inherited from BGC.Audio.BGCAudioClip
float	Duration => ChannelSamples / SamplingRate

override float	SamplingRate => 44100f

Properties
int	Position `[get, private set]`

int	RawPosition = 0 `[get, set]`
	Simulated raw sample position More...

float []	LSamples `[get]`

float []	RSamples `[get]`

Properties inherited from BGC.Audio.BGCStream
abstract int	Channels `[get]`

abstract int	TotalSamples `[get]`

abstract int	ChannelSamples `[get]`

abstract float	SamplingRate `[get]`

Properties inherited from BGC.Audio.IBGCStream
int	Channels `[get]`
	The number of underlying Channels of this BGCStream More...

int	TotalSamples `[get]`
	The total number of Samples of this BGCStream More...

int	ChannelSamples `[get]`
	The number of Samples of each channel for this BGCStream More...

float	SamplingRate `[get]`
	The sampling rate of the Stream More...

Private Attributes
int	RemainingChannelSamples => Math.Max(0, LSamples.Length - Position)

int	RemainingTotalSamples => Channels * RemainingChannelSamples

IEnumerable< double >	_channelRMS = null

Additional Inherited Members
Protected Member Functions inherited from BGC.Audio.BGCStream
virtual void	_Initialize ()

Protected Attributes inherited from BGC.Audio.BGCStream
bool	initialized = false

Detailed Description

Stream that stores the left and right channels as separate arrays

Definition at line 10 of file InterlacingAudioClip.cs.

Constructor & Destructor Documentation

◆ InterlacingAudioClip()

BGC.Audio.InterlacingAudioClip.InterlacingAudioClip	(	float []	leftSamples,
		float []	rightSamples
	)

inline

Definition at line 34 of file InterlacingAudioClip.cs.

         {
             LSamples = leftSamples;
             RSamples = rightSamples;
         }

Member Function Documentation

◆ GetChannelRMS()

override IEnumerable<double> BGC.Audio.InterlacingAudioClip.GetChannelRMS ( )

inlinevirtual

The RMS amplitude of each channel

Implements BGC.Audio.BGCStream.

Definition at line 61 of file InterlacingAudioClip.cs.

         {
             if (_channelRMS == null)
             {
                 double rmsL = 0.0;
                 double rmsR = 0.0;

                 for (int i = 0; i < ChannelSamples; i++)
                 {
                     rmsL += LSamples[i] * LSamples[i];
                     rmsR += RSamples[i] * RSamples[i];
                 }

                 rmsL = Math.Sqrt(rmsL / ChannelSamples);
                 rmsR = Math.Sqrt(rmsR / ChannelSamples);

                 _channelRMS = new double[2] { rmsL, rmsR };
             }

             return _channelRMS;
         }

◆ Read()

override int BGC.Audio.InterlacingAudioClip.Read	(	float []	data,
		int	offset,
		int	count
	)

inlinevirtual

Copy count samples into the Data buffer, starting at offset.

Returns: The number of samples copied

Implements BGC.Audio.BGCStream.

Definition at line 40 of file InterlacingAudioClip.cs.

References BGC.Mathematics.GeneralMath.Clamp().

         {
             int copyLength = Math.Min(RemainingTotalSamples, count);

             for (int i = 0; i < copyLength / 2; i++)
             {
                 data[offset + 2 * i] = LSamples[Position + i];
                 data[offset + 2 * i + 1] = RSamples[Position + i];
             }

             RawPosition += copyLength;

             return copyLength;
         }

Here is the call graph for this function:

◆ Reset()

override void BGC.Audio.InterlacingAudioClip.Reset ( )

virtual

Sets this internal state of this stream to the initial state

Implements BGC.Audio.BGCStream.

◆ Seek()

override void BGC.Audio.InterlacingAudioClip.Seek ( int position )

virtual

Seek to the indicated position in the stream

Implements BGC.Audio.BGCStream.

Field Documentation

◆ _channelRMS

IEnumerable<double> BGC.Audio.InterlacingAudioClip._channelRMS = null

private

Definition at line 60 of file InterlacingAudioClip.cs.

◆ Channels

override int BGC.Audio.InterlacingAudioClip.Channels => 2

Definition at line 29 of file InterlacingAudioClip.cs.

◆ ChannelSamples

override int BGC.Audio.InterlacingAudioClip.ChannelSamples => LSamples.Length

Definition at line 23 of file InterlacingAudioClip.cs.

◆ RemainingChannelSamples

int BGC.Audio.InterlacingAudioClip.RemainingChannelSamples => Math.Max(0, LSamples.Length - Position)

private

Definition at line 31 of file InterlacingAudioClip.cs.

◆ RemainingTotalSamples

int BGC.Audio.InterlacingAudioClip.RemainingTotalSamples => Channels * RemainingChannelSamples

private

Definition at line 32 of file InterlacingAudioClip.cs.

◆ TotalSamples

override int BGC.Audio.InterlacingAudioClip.TotalSamples => Channels * LSamples.Length

Definition at line 24 of file InterlacingAudioClip.cs.

Property Documentation

◆ LSamples

float [] BGC.Audio.InterlacingAudioClip.LSamples

get

Definition at line 26 of file InterlacingAudioClip.cs.

◆ Position

int BGC.Audio.InterlacingAudioClip.Position

getprivate set

Definition at line 12 of file InterlacingAudioClip.cs.

◆ RawPosition

int BGC.Audio.InterlacingAudioClip.RawPosition = 0

getset

Simulated raw sample position

Definition at line 18 of file InterlacingAudioClip.cs.

◆ RSamples

float [] BGC.Audio.InterlacingAudioClip.RSamples

get

Definition at line 27 of file InterlacingAudioClip.cs.

The documentation for this class was generated from the following file:

Audio/Streams/InterlacingAudioClip.cs
