Stream that stores a mono sample buffer and scaling factors. Plays as a stereo stream. More...

Inheritance diagram for BGC.Audio.NormalizedMonoClip:

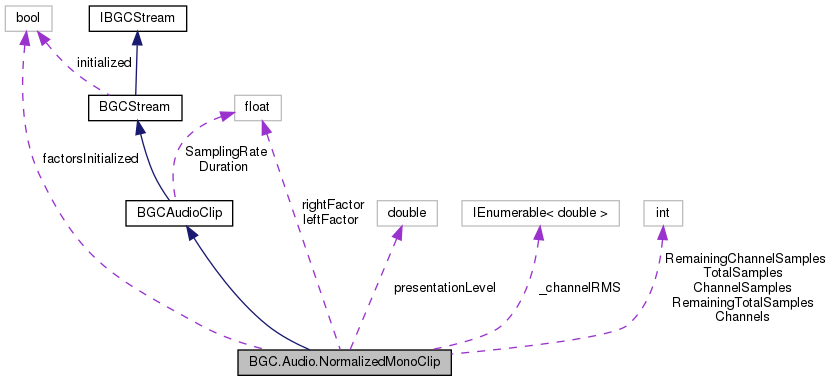

Collaboration diagram for BGC.Audio.NormalizedMonoClip:

Public Member Functions
	NormalizedMonoClip (float[] monoSamples, double leftFactor, double rightFactor)

	NormalizedMonoClip (float[] monoSamples, double presentationLevel)

override int	Read (float[] data, int offset, int count)
	Copy count samples into the Data buffer, starting at offset. More...

override void	Seek (int position)
	Seek to the indicated position in the stream More...

override void	Reset ()
	Sets this internal state of this stream to the initial state More...

override IEnumerable< double >	GetChannelRMS ()
	The RMS amplitude of each channel More...

Public Member Functions inherited from BGC.Audio.BGCStream
void	Initialize ()
	Perform any calculations necessary to prepare the Stream More...

Data Fields
override int	TotalSamples => 2 * Samples.Length

override int	ChannelSamples => Samples.Length

override int	Channels => 2

Data Fields inherited from BGC.Audio.BGCAudioClip
float	Duration => ChannelSamples / SamplingRate

override float	SamplingRate => 44100f

Protected Member Functions
override void	_Initialize ()

Properties
int	Position `[get, set]`

float []	Samples `[get]`

Properties inherited from BGC.Audio.BGCStream
abstract int	Channels `[get]`

abstract int	TotalSamples `[get]`

abstract int	ChannelSamples `[get]`

abstract float	SamplingRate `[get]`

Properties inherited from BGC.Audio.IBGCStream
int	Channels `[get]`
	The number of underlying Channels of this BGCStream More...

int	TotalSamples `[get]`
	The total number of Samples of this BGCStream More...

int	ChannelSamples `[get]`
	The number of Samples of each channel for this BGCStream More...

float	SamplingRate `[get]`
	The sampling rate of the Stream More...

Private Attributes
int	RemainingChannelSamples => Math.Max(0, Samples.Length - Position)

int	RemainingTotalSamples => 2 * RemainingChannelSamples

bool	factorsInitialized = false

float	leftFactor

float	rightFactor

readonly double	presentationLevel

IEnumerable< double >	_channelRMS = null

Additional Inherited Members
Protected Attributes inherited from BGC.Audio.BGCStream
bool	initialized = false

Detailed Description

Stream that stores a mono sample buffer and scaling factors. Plays as a stereo stream.

Definition at line 11 of file NormalizedMonoClip.cs.

Constructor & Destructor Documentation

◆ NormalizedMonoClip() [1/2]

BGC.Audio.NormalizedMonoClip.NormalizedMonoClip	(	float []	monoSamples,
		double	leftFactor,
		double	rightFactor
	)

inline

Definition at line 30 of file NormalizedMonoClip.cs.

         {
             Samples = monoSamples;
             this.leftFactor = (float)leftFactor;
             this.rightFactor = (float)rightFactor;
             factorsInitialized = true;
         }

◆ NormalizedMonoClip() [2/2]

BGC.Audio.NormalizedMonoClip.NormalizedMonoClip	(	float []	monoSamples,
		double	presentationLevel
	)

inline

Definition at line 38 of file NormalizedMonoClip.cs.

         {
             Samples = monoSamples;
             this.presentationLevel = presentationLevel;
             factorsInitialized = false;
         }

Member Function Documentation

◆ _Initialize()

override void BGC.Audio.NormalizedMonoClip._Initialize ( )

inlineprotectedvirtual

Reimplemented from BGC.Audio.BGCStream.

Definition at line 45 of file NormalizedMonoClip.cs.

References BGC.Audio.Normalization.GetMonoRMSScalingFactors().

         {
             if (!factorsInitialized)
             {
                 factorsInitialized = true;

                 Normalization.GetMonoRMSScalingFactors(
                     monoSamples: Samples,
                     desiredLevel: presentationLevel,
                     scalingFactorL: out double tempLeftFactor,
                     scalingFactorR: out double tempRightFactor);

                 leftFactor = (float)tempLeftFactor;
                 rightFactor = (float)tempRightFactor;
             }
         }

Here is the call graph for this function:

◆ GetChannelRMS()

override IEnumerable<double> BGC.Audio.NormalizedMonoClip.GetChannelRMS ( )

inlinevirtual

The RMS amplitude of each channel

Implements BGC.Audio.BGCStream.

Definition at line 87 of file NormalizedMonoClip.cs.

         {
             if (_channelRMS == null)
             {
                 double rms = 0.0;

                 for (int i = 0; i < ChannelSamples; i++)
                 {
                     rms += Samples[i] * Samples[i];
                 }

                 rms = Math.Sqrt(rms / ChannelSamples);

                 _channelRMS = new double[2] { leftFactor * rms, rightFactor * rms };
             }

             return _channelRMS;
         }

◆ Read()

override int BGC.Audio.NormalizedMonoClip.Read	(	float []	data,
		int	offset,
		int	count
	)

inlinevirtual

Copy count samples into the Data buffer, starting at offset.

Returns: The number of samples copied

Implements BGC.Audio.BGCStream.

Definition at line 62 of file NormalizedMonoClip.cs.

References BGC.Mathematics.GeneralMath.Clamp().

         {
             if (!initialized)
             {
                 Initialize();
             }

             int copyLength = Math.Min(RemainingChannelSamples, count / 2);

             for (int i = 0; i < copyLength; i++)
             {
                 data[offset + 2 * i] = leftFactor * Samples[Position + i];
                 data[offset + 2 * i + 1] = rightFactor * Samples[Position + i];
             }

             Position += copyLength;

             return 2 * copyLength;
         }

Here is the call graph for this function:

◆ Reset()

override void BGC.Audio.NormalizedMonoClip.Reset ( )

virtual

Sets this internal state of this stream to the initial state

Implements BGC.Audio.BGCStream.

◆ Seek()

override void BGC.Audio.NormalizedMonoClip.Seek ( int position )

virtual

Seek to the indicated position in the stream

Implements BGC.Audio.BGCStream.

Field Documentation

◆ _channelRMS

IEnumerable<double> BGC.Audio.NormalizedMonoClip._channelRMS = null

private

Definition at line 86 of file NormalizedMonoClip.cs.

◆ Channels

override int BGC.Audio.NormalizedMonoClip.Channels => 2

Definition at line 20 of file NormalizedMonoClip.cs.

◆ ChannelSamples

override int BGC.Audio.NormalizedMonoClip.ChannelSamples => Samples.Length

Definition at line 16 of file NormalizedMonoClip.cs.

◆ factorsInitialized

bool BGC.Audio.NormalizedMonoClip.factorsInitialized = false

private

Definition at line 25 of file NormalizedMonoClip.cs.

◆ leftFactor

float BGC.Audio.NormalizedMonoClip.leftFactor

private

Definition at line 26 of file NormalizedMonoClip.cs.

◆ presentationLevel

readonly double BGC.Audio.NormalizedMonoClip.presentationLevel

private

Definition at line 28 of file NormalizedMonoClip.cs.

◆ RemainingChannelSamples

int BGC.Audio.NormalizedMonoClip.RemainingChannelSamples => Math.Max(0, Samples.Length - Position)

private

Definition at line 22 of file NormalizedMonoClip.cs.

◆ RemainingTotalSamples

int BGC.Audio.NormalizedMonoClip.RemainingTotalSamples => 2 * RemainingChannelSamples

private

Definition at line 23 of file NormalizedMonoClip.cs.

◆ rightFactor

float BGC.Audio.NormalizedMonoClip.rightFactor

private

Definition at line 27 of file NormalizedMonoClip.cs.

◆ TotalSamples

override int BGC.Audio.NormalizedMonoClip.TotalSamples => 2 * Samples.Length

Definition at line 15 of file NormalizedMonoClip.cs.

Property Documentation

◆ Position

int BGC.Audio.NormalizedMonoClip.Position

getset

Definition at line 13 of file NormalizedMonoClip.cs.

◆ Samples

float [] BGC.Audio.NormalizedMonoClip.Samples

get

Definition at line 18 of file NormalizedMonoClip.cs.

The documentation for this class was generated from the following file:

Audio/Streams/NormalizedMonoClip.cs
