Simplest implementation of a samplebuffer-based stream. More...

Inheritance diagram for BGC.Audio.SimpleAudioClip:

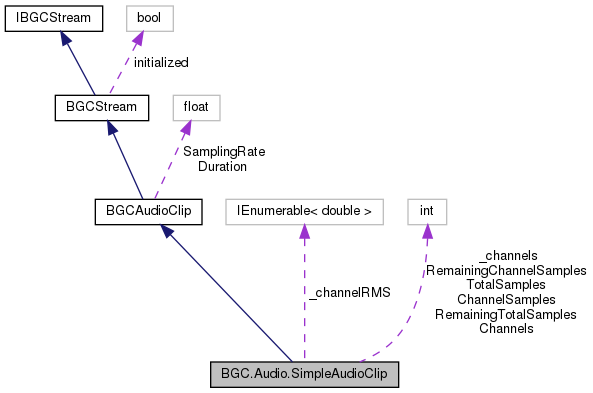

Collaboration diagram for BGC.Audio.SimpleAudioClip:

Public Member Functions
	SimpleAudioClip (float[] samples, int channels)

override int	Read (float[] data, int offset, int count)
	Copy count samples into the Data buffer, starting at offset. More...

override void	Seek (int position)
	Seek to the indicated position in the stream More...

override void	Reset ()
	Sets this internal state of this stream to the initial state More...

override IEnumerable< double >	GetChannelRMS ()
	The RMS amplitude of each channel More...

Public Member Functions inherited from BGC.Audio.BGCStream
void	Initialize ()
	Perform any calculations necessary to prepare the Stream More...

Data Fields
override int	TotalSamples => Samples.Length

override int	ChannelSamples => Samples.Length / Channels

override int	Channels => _channels

Data Fields inherited from BGC.Audio.BGCAudioClip
float	Duration => ChannelSamples / SamplingRate

override float	SamplingRate => 44100f

Properties
int	Position `[get, set]`

int	RawPosition `[get, private set]`

float []	Samples `[get]`

Properties inherited from BGC.Audio.BGCStream
abstract int	Channels `[get]`

abstract int	TotalSamples `[get]`

abstract int	ChannelSamples `[get]`

abstract float	SamplingRate `[get]`

Properties inherited from BGC.Audio.IBGCStream
int	Channels `[get]`
	The number of underlying Channels of this BGCStream More...

int	TotalSamples `[get]`
	The total number of Samples of this BGCStream More...

int	ChannelSamples `[get]`
	The number of Samples of each channel for this BGCStream More...

float	SamplingRate `[get]`
	The sampling rate of the Stream More...

Private Attributes
readonly int	_channels

int	RemainingChannelSamples => RemainingTotalSamples / Channels

int	RemainingTotalSamples => GeneralMath.Clamp(Samples.Length - RawPosition, 0, Samples.Length)

IEnumerable< double >	_channelRMS = null

Additional Inherited Members
Protected Member Functions inherited from BGC.Audio.BGCStream
virtual void	_Initialize ()

Protected Attributes inherited from BGC.Audio.BGCStream
bool	initialized = false

Detailed Description

Simplest implementation of a samplebuffer-based stream.

Definition at line 10 of file SimpleAudioClip.cs.

Constructor & Destructor Documentation

◆ SimpleAudioClip()

BGC.Audio.SimpleAudioClip.SimpleAudioClip	(	float []	samples,
		int	channels
	)

inline

Definition at line 31 of file SimpleAudioClip.cs.

         {
             Samples = samples;
             _channels = channels;
         }

Member Function Documentation

◆ GetChannelRMS()

override IEnumerable<double> BGC.Audio.SimpleAudioClip.GetChannelRMS ( )

inlinevirtual

The RMS amplitude of each channel

Implements BGC.Audio.BGCStream.

Definition at line 60 of file SimpleAudioClip.cs.

         {
             if (_channelRMS == null)
             {
                 double[] rms = new double[Channels];

                 for (int i = 0; i < TotalSamples; i++)
                 {
                     rms[i % Channels] += Samples[i] * Samples[i];
                 }

                 for(int i = 0; i < Channels; i++)
                 {
                     rms[i] = Math.Sqrt(rms[i] / ChannelSamples);
                 }

                 _channelRMS = rms;
             }

             return _channelRMS;
         }

◆ Read()

override int BGC.Audio.SimpleAudioClip.Read	(	float []	data,
		int	offset,
		int	count
	)

inlinevirtual

Copy count samples into the Data buffer, starting at offset.

Returns: The number of samples copied

Implements BGC.Audio.BGCStream.

Definition at line 37 of file SimpleAudioClip.cs.

References BGC.Mathematics.GeneralMath.Clamp().

         {
             //Just directly copy samples
             int copyLength = Math.Min(RemainingTotalSamples, count);

             Array.Copy(
                 sourceArray: Samples,
                 sourceIndex: RawPosition,
                 destinationArray: data,
                 destinationIndex: offset,
                 length: copyLength);

             RawPosition += copyLength;

             return copyLength;
         }

Here is the call graph for this function:

◆ Reset()

override void BGC.Audio.SimpleAudioClip.Reset ( )

virtual

Sets this internal state of this stream to the initial state

Implements BGC.Audio.BGCStream.

◆ Seek()

override void BGC.Audio.SimpleAudioClip.Seek ( int position )

virtual

Seek to the indicated position in the stream

Implements BGC.Audio.BGCStream.

Field Documentation

◆ _channelRMS

IEnumerable<double> BGC.Audio.SimpleAudioClip._channelRMS = null

private

Definition at line 59 of file SimpleAudioClip.cs.

◆ _channels

readonly int BGC.Audio.SimpleAudioClip._channels

private

Definition at line 25 of file SimpleAudioClip.cs.

◆ Channels

override int BGC.Audio.SimpleAudioClip.Channels => _channels

Definition at line 26 of file SimpleAudioClip.cs.

Referenced by BGC.Tests.TestOverlapAdd.TestPhaseVocoding().

◆ ChannelSamples

override int BGC.Audio.SimpleAudioClip.ChannelSamples => Samples.Length / Channels

Definition at line 21 of file SimpleAudioClip.cs.

◆ RemainingChannelSamples

int BGC.Audio.SimpleAudioClip.RemainingChannelSamples => RemainingTotalSamples / Channels

private

Definition at line 28 of file SimpleAudioClip.cs.

◆ RemainingTotalSamples

int BGC.Audio.SimpleAudioClip.RemainingTotalSamples => GeneralMath.Clamp(Samples.Length - RawPosition, 0, Samples.Length)

private

Definition at line 29 of file SimpleAudioClip.cs.

◆ TotalSamples

override int BGC.Audio.SimpleAudioClip.TotalSamples => Samples.Length

Definition at line 20 of file SimpleAudioClip.cs.

Property Documentation

◆ Position

int BGC.Audio.SimpleAudioClip.Position

getset

Definition at line 13 of file SimpleAudioClip.cs.

◆ RawPosition

int BGC.Audio.SimpleAudioClip.RawPosition

getprivate set

Definition at line 18 of file SimpleAudioClip.cs.

◆ Samples

float [] BGC.Audio.SimpleAudioClip.Samples

get

Definition at line 23 of file SimpleAudioClip.cs.

Referenced by BGC.Tests.TestOverlapAdd.TestPhaseVocoding().

The documentation for this class was generated from the following file:

Audio/Streams/SimpleAudioClip.cs
