BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum > Class Template Reference

Inheritance diagram for BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >:

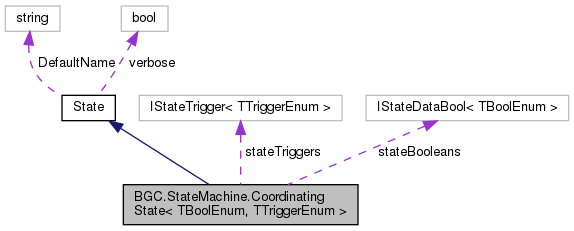

Collaboration diagram for BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >:

Public Member Functions
	CoordinatingState ()
	Create a coordinating state with the default name More...
	CoordinatingState (string name)
	Create a coordinate state with a custom name rather than the default More...
void	SetStateMachineFunctions (IStateDataBool< TBoolEnum > booleans, IStateTrigger< TTriggerEnum > triggers)
	Receive state machine related functions that give states required behaviour More...
Public Member Functions inherited from BGC.StateMachine.State
	State ()
	Create a state with the default name More...
	State (string name)
	Create a state with a custom name rather than the default More...
void	OnEnter ()
	Called when the state is entered More...
void	OnExit ()
	Called when the state is exited, before the next state is entered More...
virtual void	Update ()
	This can be called every frame or whenever for complex states that have behavior on a frame by X basis. More...
void	SetVerbose (bool isVerbose)
	Set whether the state machine is verbose or not More...

Protected Member Functions
void	ActivateTrigger (TTriggerEnum key)
	Activate a trigger in the state machine this state is a part of More...
void	SetBool (TBoolEnum key, bool val)
	Set a bool in the state machine this state is a part of More...
bool	GetBool (TBoolEnum key)
	Get a bool from the state machine this state is a part of More...
Protected Member Functions inherited from BGC.StateMachine.State
abstract void	OnStateEnter ()
	Called when the state is entered More...
virtual void	OnStateExit ()
	Called when the state is exited before the next state is entered More...

Private Attributes
IStateTrigger< TTriggerEnum >	stateTriggers
IStateDataBool< TBoolEnum >	stateBooleans

Additional Inherited Members
Protected Attributes inherited from BGC.StateMachine.State
virtual string	DefaultName => "State"
Properties inherited from BGC.StateMachine.State
string	Name [get, private set]
	Name of the state. This will either be user defined or the default state name depending on the constructor used More...

Detailed Description

Type Constraints

TBoolEnum	:	Enum
TTriggerEnum	:	Enum

Definition at line 5 of file CoordinatingState.cs.

Constructor & Destructor Documentation

CoordinatingState() [1/2]

BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.CoordinatingState ( )

inline

Create a coordinating state with the default name

Definition at line 15 of file CoordinatingState.cs.

                                   : base()
        {
        }

CoordinatingState() [2/2]

BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.CoordinatingState ( string  name )

inline

Create a coordinate state with a custom name rather than the default

Definition at line 22 of file CoordinatingState.cs.

                                              : base(name)
        {
        }

Member Function Documentation

ActivateTrigger()

void BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.ActivateTrigger ( TTriggerEnum  key )

protected

Activate a trigger in the state machine this state is a part of

Parameters

key

Returns

GetBool()

bool BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.GetBool ( TBoolEnum  key )

protected

Get a bool from the state machine this state is a part of

Parameters

key

Returns

SetBool()

void BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.SetBool ( TBoolEnum  key, bool  val  )

protected

Set a bool in the state machine this state is a part of

Parameters

key
val

Returns

SetStateMachineFunctions()

void BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.SetStateMachineFunctions ( IStateDataBool< TBoolEnum >  booleans, IStateTrigger< TTriggerEnum >  triggers  )

inline

Receive state machine related functions that give states required behaviour

Definition at line 29 of file CoordinatingState.cs.

References BGC.StateMachine.IStateTrigger< TTriggerEnum >.ActivateTrigger(), BGC.StateMachine.IStateDataBool< TBoolEnum >.GetBool(), and BGC.StateMachine.IStateDataBool< TBoolEnum >.SetBool().

Referenced by BGC.StateMachine.StateMachine< TBoolEnum, TTriggerEnum >.AddState().

        {
            stateTriggers = triggers ?? throw new ArgumentNullException(
                paramName: nameof(triggers),
                message: "stateMachine cannot be null.");

            stateBooleans = booleans ?? throw new ArgumentNullException(
                paramName: nameof(booleans),
                message: "stateMachine cannot be null.");
        }

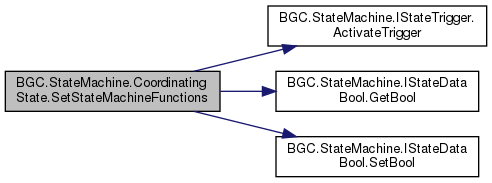

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

stateBooleans

IStateDataBool<TBoolEnum> BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.stateBooleans

private

Definition at line 10 of file CoordinatingState.cs.

stateTriggers

IStateTrigger<TTriggerEnum> BGC.StateMachine.CoordinatingState< TBoolEnum, TTriggerEnum >.stateTriggers

private

Definition at line 9 of file CoordinatingState.cs.

---

The documentation for this class was generated from the following file:

• StateMachine/CoordinatingState.cs
