BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum > Class Template Reference

A trigger condition, similar to the bool condition, will transition while a trigger is active. Once consumed, it will not transition. On a transition, it will consume the trigger it is associated with. More...

Inheritance diagram for BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >:

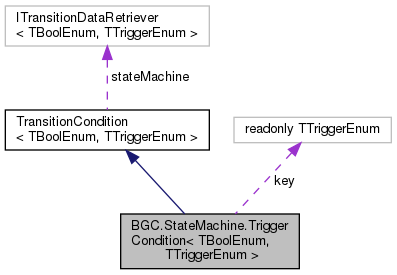

Collaboration diagram for BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >:

Public Member Functions
	TriggerCondition (TTriggerEnum key)
	Construct a trigger condition with the key that will be checked in the triggers dictionary. More...
override void	OnTransition ()
	On transition, a trigger will always be consumed More...
override bool	ShouldTransition ()
	If the required trigger has been activated this will return true until it has been consumed More...
Public Member Functions inherited from BGC.StateMachine.TransitionCondition< TBoolEnum, TTriggerEnum >
void	SetStateMachineFunctions (ITransitionDataRetriever< TBoolEnum, TTriggerEnum > stateMachine)
	Sets the required functions for the transition that it has received from the state machine. More...

Protected Member Functions
override void	StateMachineFunctionsSet ()
	A transition receives information from the state machine on construction, however, the transition condition will send the functions to all it contains More...

Private Attributes
readonly TTriggerEnum	key
	Key to check state data triggers More...

Additional Inherited Members
Protected Attributes inherited from BGC.StateMachine.TransitionCondition< TBoolEnum, TTriggerEnum >
ITransitionDataRetriever< TBoolEnum, TTriggerEnum >	stateMachine

Detailed Description

A trigger condition, similar to the bool condition, will transition while a trigger is active. Once consumed, it will not transition. On a transition, it will consume the trigger it is associated with.

Type Constraints

TBoolEnum	:	Enum
TTriggerEnum	:	Enum

Definition at line 10 of file TriggerCondition.cs.

Constructor & Destructor Documentation

TriggerCondition()

BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >.TriggerCondition ( TTriggerEnum  key )

inline

Construct a trigger condition with the key that will be checked in the triggers dictionary.

Definition at line 24 of file TriggerCondition.cs.

        {
            this.key = key;
        }

Member Function Documentation

OnTransition()

override void BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >.OnTransition ( )

virtual

On transition, a trigger will always be consumed

Implements BGC.StateMachine.TransitionCondition< TBoolEnum, TTriggerEnum >.

ShouldTransition()

override bool BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >.ShouldTransition ( )

virtual

If the required trigger has been activated this will return true until it has been consumed

Implements BGC.StateMachine.TransitionCondition< TBoolEnum, TTriggerEnum >.

StateMachineFunctionsSet()

override void BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >.StateMachineFunctionsSet ( )

inlineprotectedvirtual

A transition receives information from the state machine on construction, however, the transition condition will send the functions to all it contains

Implements BGC.StateMachine.TransitionCondition< TBoolEnum, TTriggerEnum >.

Definition at line 40 of file TriggerCondition.cs.

        {
            // pass
        }

Field Documentation

key

readonly TTriggerEnum BGC.StateMachine.TriggerCondition< TBoolEnum, TTriggerEnum >.key

private

Key to check state data triggers

Definition at line 18 of file TriggerCondition.cs.

---

The documentation for this class was generated from the following file:

• StateMachine/TriggerCondition.cs
