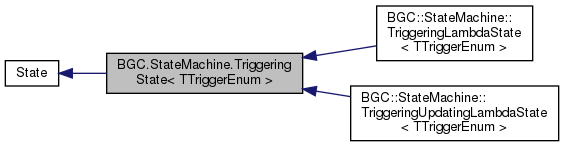

Inheritance diagram for BGC.StateMachine.TriggeringState< TTriggerEnum >:

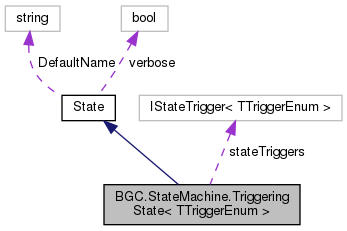

Collaboration diagram for BGC.StateMachine.TriggeringState< TTriggerEnum >:

Public Member Functions
	TriggeringState ()
	Create a coordinating state with the default name More...

	TriggeringState (string name)
	Create a coordinate state with a custom name rather than the default More...

void	SetStateMachineFunctions (IStateTrigger< TTriggerEnum > triggers)
	Receive state machine related functions that give states required behaviour More...

Public Member Functions inherited from BGC.StateMachine.State
	State ()
	Create a state with the default name More...

	State (string name)
	Create a state with a custom name rather than the default More...

void	OnEnter ()
	Called when the state is entered More...

void	OnExit ()
	Called when the state is exited, before the next state is entered More...

virtual void	Update ()
	This can be called every frame or whenever for complex states that have behavior on a frame by X basis. More...

void	SetVerbose (bool isVerbose)
	Set whether the state machine is verbose or not More...

Protected Member Functions
void	ActivateTrigger (TTriggerEnum key)
	Activate a trigger in the state machine this state is a part of More...

Protected Member Functions inherited from BGC.StateMachine.State
abstract void	OnStateEnter ()
	Called when the state is entered More...

virtual void	OnStateExit ()
	Called when the state is exited before the next state is entered More...

Private Attributes
IStateTrigger< TTriggerEnum >	stateTriggers

Additional Inherited Members
Protected Attributes inherited from BGC.StateMachine.State
virtual string	DefaultName => "State"

Properties inherited from BGC.StateMachine.State
string	Name `[get, private set]`
	Name of the state. This will either be user defined or the default state name depending on the constructor used More...

Detailed Description

Type Constraints

TTriggerEnum

:

Enum

Definition at line 5 of file TriggeringState.cs.

Constructor & Destructor Documentation

◆ TriggeringState() [1/2]

BGC.StateMachine.TriggeringState< TTriggerEnum >.TriggeringState ( )

inline

Create a coordinating state with the default name

Definition at line 13 of file TriggeringState.cs.

                                  : base()
         {
         }

◆ TriggeringState() [2/2]

BGC.StateMachine.TriggeringState< TTriggerEnum >.TriggeringState ( string name )

inline

Create a coordinate state with a custom name rather than the default

Definition at line 20 of file TriggeringState.cs.

                                             : base(name)
         {
         }

Member Function Documentation

◆ ActivateTrigger()

void BGC.StateMachine.TriggeringState< TTriggerEnum >.ActivateTrigger ( TTriggerEnum key )

protected

Activate a trigger in the state machine this state is a part of

Parameters

key

Returns

◆ SetStateMachineFunctions()

void BGC.StateMachine.TriggeringState< TTriggerEnum >.SetStateMachineFunctions ( IStateTrigger< TTriggerEnum > triggers )

inline

Receive state machine related functions that give states required behaviour

Definition at line 27 of file TriggeringState.cs.

References BGC.StateMachine.IStateTrigger< TTriggerEnum >.ActivateTrigger().

Referenced by BGC.StateMachine.StateMachine< TBoolEnum, TTriggerEnum >.AddState().

         {
             stateTriggers = triggers ?? throw new ArgumentNullException(
                 paramName: nameof(triggers),
                 message: "stateMachine cannot be null.");
         }
